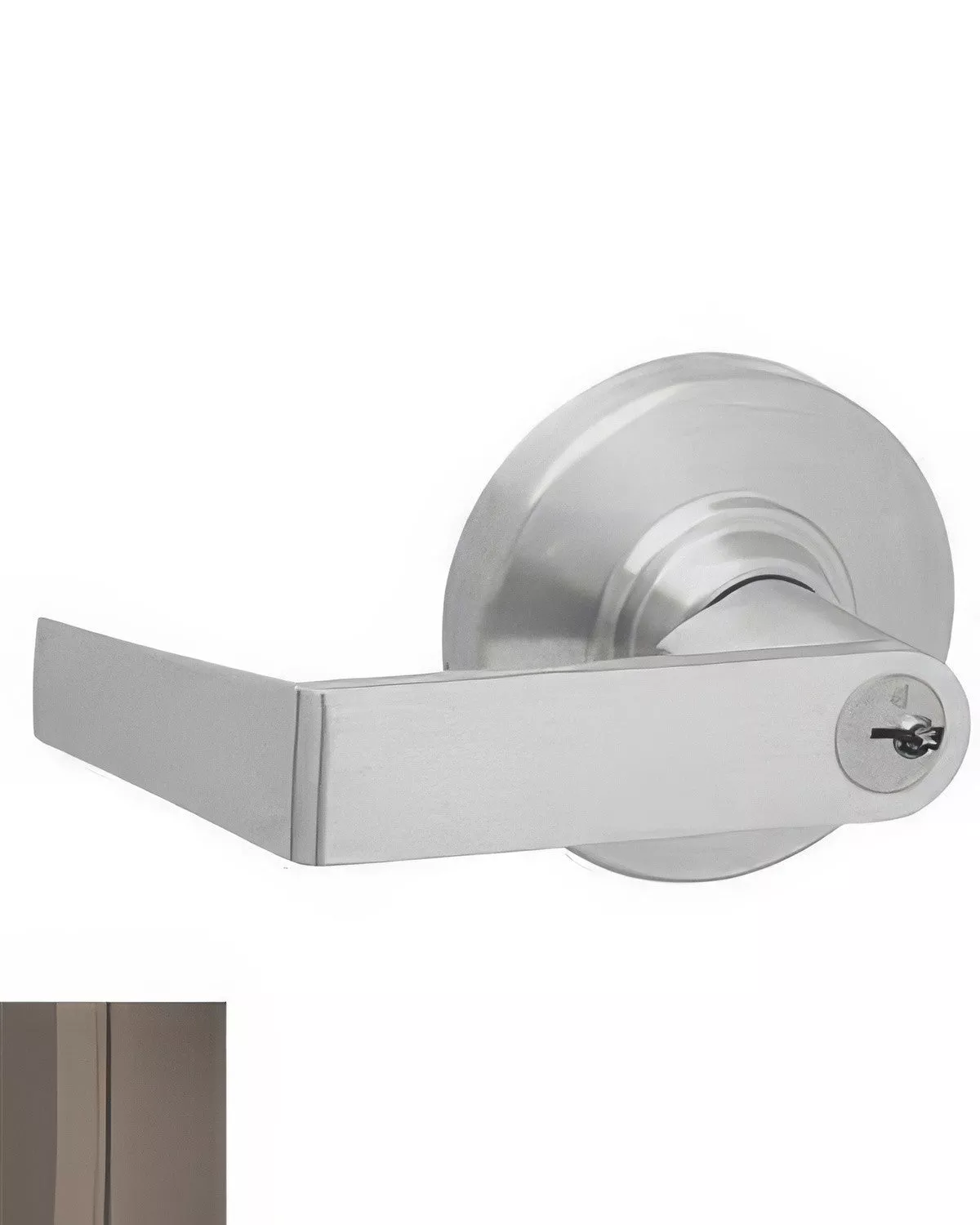

The Schlage Commercial ND73BRHO Rhodes Keyed Corridor Door Lever Less Small Format Core is a corridor door lever. It is configured for a corridor-function commercial door.
Verified specifications include Zinc construction; Collection: Rhodes; Backset: 2-3/8 to 5; Door Thickness: 1-5/8 to 2-1/8.
Product Details
- Manufacturer Part Number: ND73BRHO
- Product Type: Corridor Door Lever
- Function: Corridor Door Lever
- Brand: Schlage Commercial
- Material: Zinc
- Collection: Rhodes
- Style: Commercial
- Shape: Flat / Straight
- Backset: 2-3/8 to 5
- Door Thickness: 1-5/8 to 2-1/8
- Cross Bore: 2-1/8
- Edge Bore: 1
- Handing: Left Hand / Right Hand / Reversible
- BHMA Certification: Grade 1
- ANSI Certification: A156.2
- ANSI/BHMA: A156.2
- ADA Compliant: Yes
- Latch Faceplate: Round Corner / Square Corner
- Projection: 2-1/2
- Lever Length: 4.88
- Rose Diameter: 3.44
- Approved Commercial Use: Yes
Before ordering: Confirm model ND73BRHO and the required function, cylinder or core configuration, handing, door preparation, and dimensions shown in the product details.
