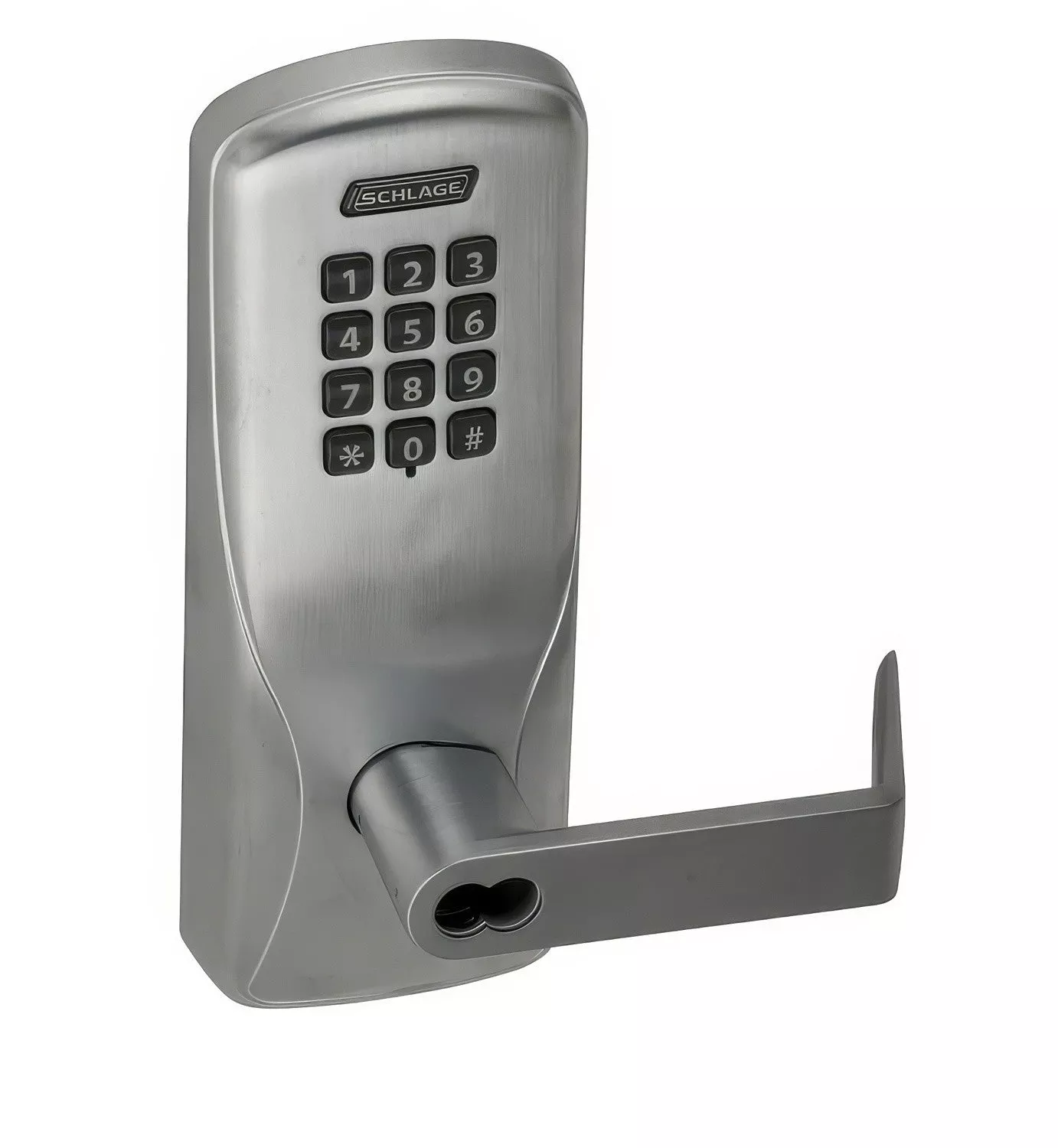

The Schlage CO100CY70KPRHO626B CO-Series Commercial Electronic Cylindrical Lock Less SFIC Cylinder is a storeroom Electronic Cylindrical Lock. It is intended for a commercial door opening that requires a storeroom-function electronic cylindrical lock.
Verified specifications include Metal construction; Backset: 2-3/8 to 5; Door Thickness: 1-3/8 to 2-3/4; BHMA Certification: Grade 1.
Product Details
- Manufacturer Part Number: CO100CY70KPRHO626B
- Product Type: Commercial Electronic Cylindrical Lock
- Function: Storeroom Electronic Cylindrical Lock
- Material: Metal
- Collection: CO-Series / Rhodes
- Series: CO-Series
- Backset: 2-3/8 to 5
- Door Thickness: 1-3/8 to 2-3/4
- Projection: 3-11/16
- Width: 3-7/16
- Height: 9.46
- Handing: Left Hand / Right Hand / Reversible
- BHMA Certification: Grade 1
- ANSI Certification: A156.25
- ANSI/BHMA: A156.25
- ADA Compliant: Yes
- UL Listed: Yes
- Latch Faceplate: Square Corner
- Approved Commercial Use: Yes
Before ordering: Confirm model CO100CY70KPRHO626B, the required door preparation, handing when applicable, and the exact product configuration shown in the title.
