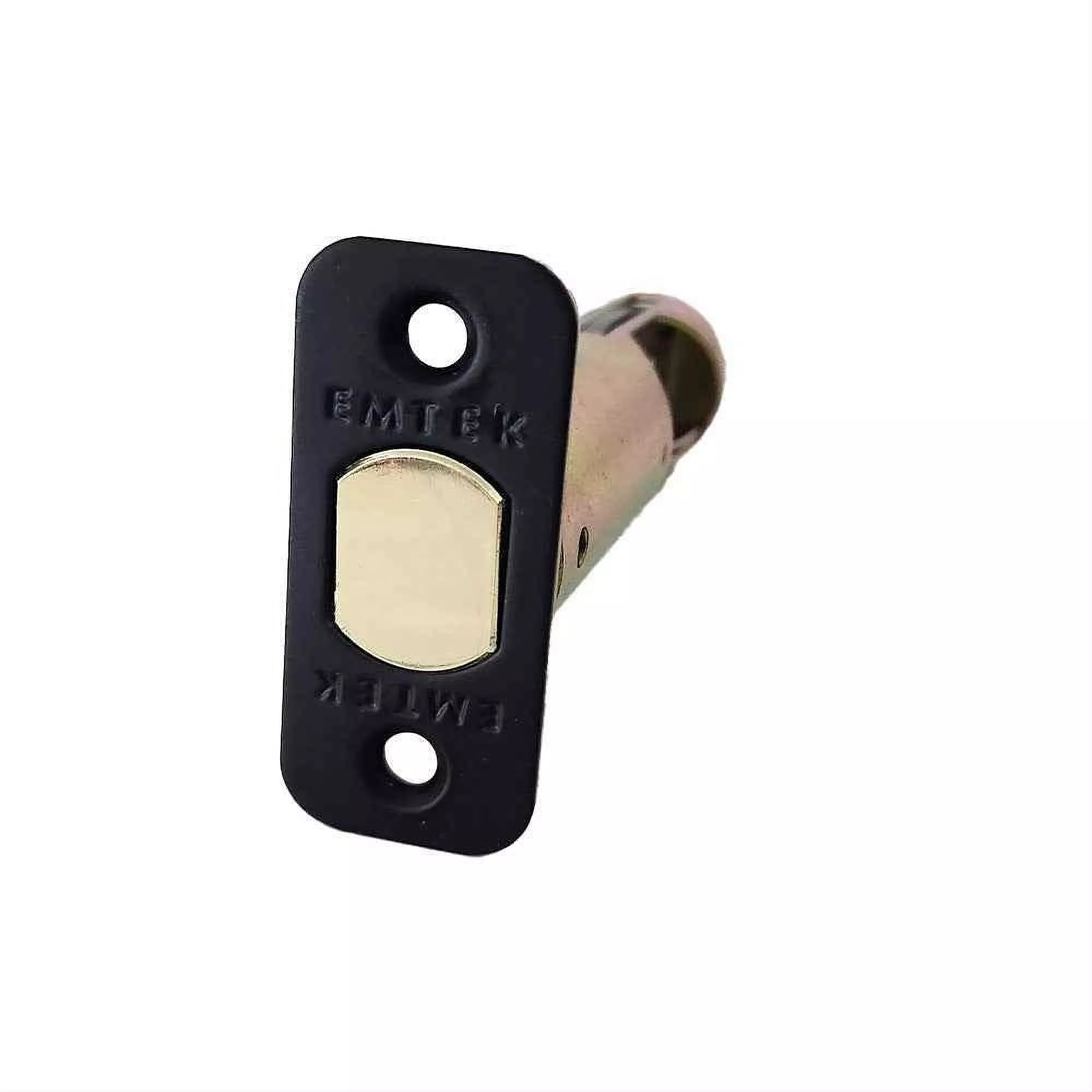

The Emtek LC4-DBLCH275R-US is a replacement deadbolt latch with a 2-3/4 backset and a radius-corner faceplate. It carries the locking bolt between a compatible Emtek deadbolt trim set and the prepared door edge.
Select this component when the existing deadbolt uses the same backset, bolt assembly, and door-edge preparation. This listing is for the latch component rather than a complete keyed deadbolt set.
Product Details
- Product type: deadbolt latch
- Function: deadbolt bolt mechanism
- Backset: 2-3/4
- Faceplate: radius corners
- Product code: LC4-DBLCH275R-US
- Application: compatible Emtek deadbolt assembly
- Complete deadbolt set: no
- Catalog grouping: US finish-code group
Compatibility: Confirm the compatible Emtek deadbolt, 2-3/4 backset, bolt throw and housing geometry, radius-corner edge preparation before ordering.
