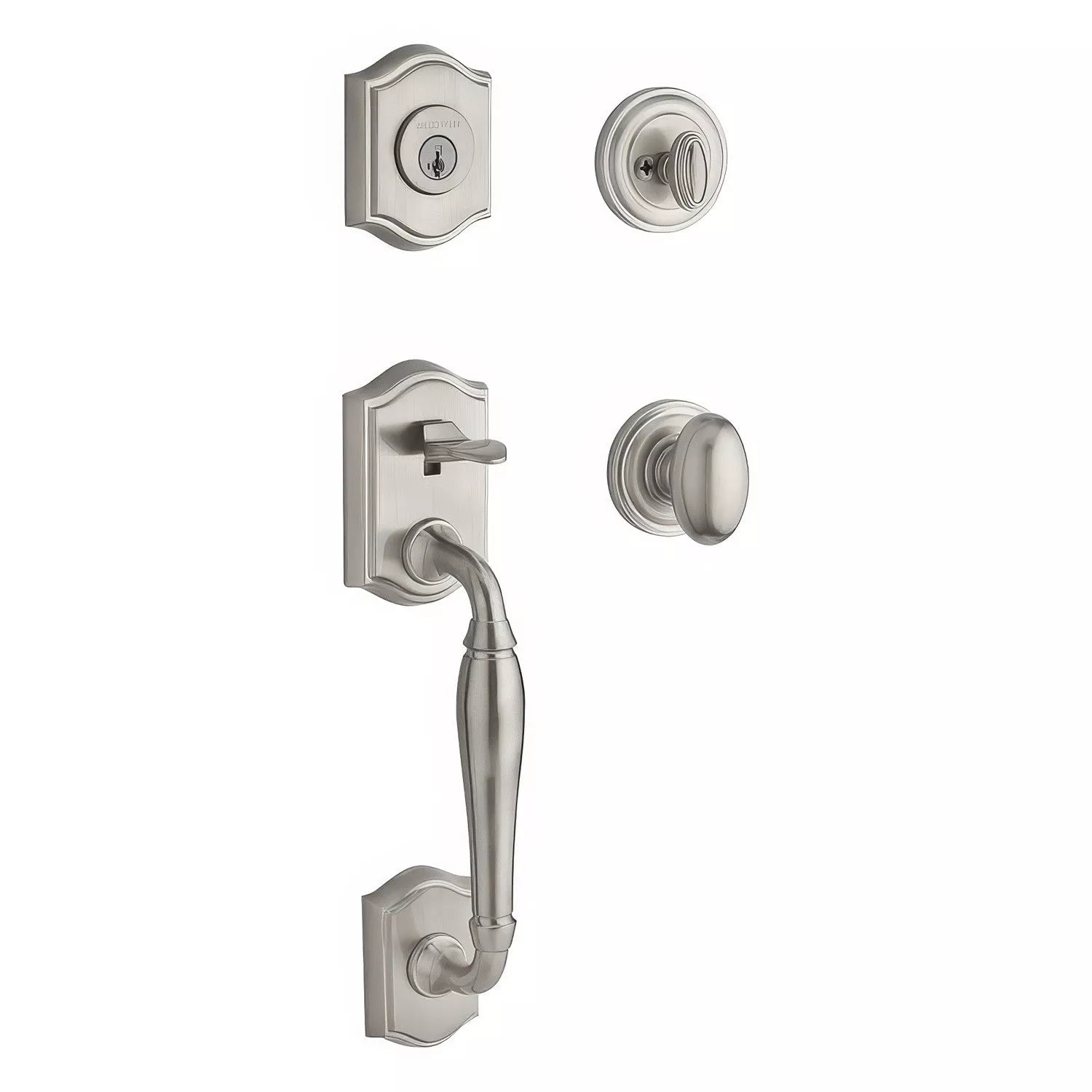

The Baldwin SCWESXELLTRR150 is a single-cylinder entry handleset designed for exterior doors requiring keyed access outside and interior thumbturn operation. The model and product title identify the exact configuration being offered.
Made from brass, this hardware is part of the Baldwin Reserve collection. Confirm handing, backset, door preparation, dimensions, and included components before ordering.
- Model: SCWESXELLTRR150
- Function: Single Cylinder Handleset
- Material: Brass
- Collection: Reserve
- Series: Westcliff Handleset
- Backset: Adjustable 2-3/8 in to 2-3/4 in
- Door Thickness: 1-3/4 in to 2 in
- Cross Bore: 2-1/8 in
- Latch Faceplate: Round Corner / Square Corner / Drive-In
- Cylinder: 5-pin C Keyway
Additional Baldwin Information
Baldwin Hardware SC.WESxELL.TRR Specification
Baldwin Hardware SC.WESxELL.TRR Installation Instruction
View Baldwin Manufacturer Warranty
Shop All Baldwin Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
